AOK-RL-8II

The second-generation TEC BLOW machine integrates advanced technology and innovation across all key functions.Designed for simple and flexible operation,it ensures continues,non-stop production with a compact footprint,high output,and significant savings in heating energy and air consumption.These features meet the highest customer demands and establish TEC BLOW as a leader in blow molding technology.

Category High-Speed Stretch Blow Molding Machine

AOK-RL-8II description

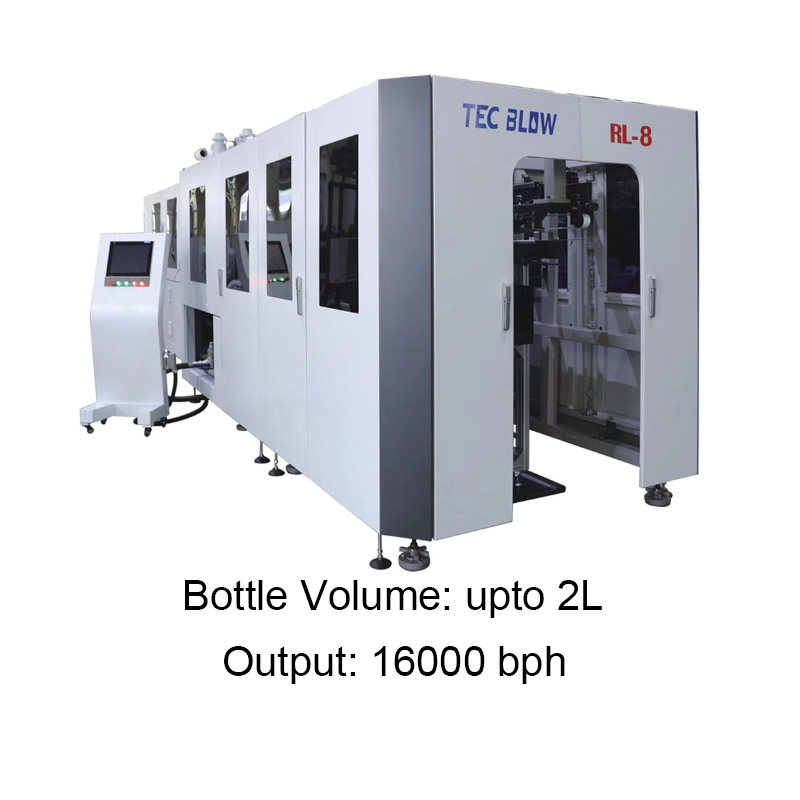

HIGH SPEED STRETCH BLOW MOLDING MACHINE BY AOKTAC

Technical specifications

TEC Blow-Solutions for PET Small Bottles

	Model	Unit	RL-8II
Clamping System	Number of cavity	Cavities	8
	Mold stroke	mm	0-130
	Stretch stroke	mm	340
	Bottom stroke	mm	50
	Cavity distance	mm	114.3
	Heating distance	mm	44.45
	Number of holder	Pcs	148
Container	Max.container volume	ltr	2
	Max. neck diameter (optional)	mm	30/38
	Max.prefrom height	mm	120
	Max.container diameter	mm	95
	Max.container height	mm	320
Theoretical Output		B.P.H	16000
Electrical System	Heating oven	Units	8
	Box*channel	Storey	10
	Number of lamp	Pcs	80
	Heating power	kw	96
	Average power	kw	30
	Installed power	kw	105
	Voltage	V	220v/380V/3phase
Air System	Operating pressure	kg/cm²	7
	Blowing pressure	Mpa	3.0-4.0
	High pressure air consuming	m³/min	12
Chiller System	Temperature	℃	10-15
	Pressure	Mpa	0.4
	Flow rate	L/min	120
	Heating power	HP	10
Machine	Machine dimension (LWH)	m	7.81.72.6
	Machine weight	Kg	10000

Development History

With over 25 years of unremitting efforts by its team and outstanding achievements in the field of two-stage reheat stretch blow molding technology for PET preforms, AOKTAC has become a global leader in this equipment manufacturing industry.

European Technology & Chinese Efficiency

Originated in Europe, optimized for the world

Through years of dedicated R&D by our engineering teams,we have evolved the rotary heating& linear blowing technology into the next-generation TECBLOW platform.Designed for maximum efficiency,it significantly reduces footprint while delivering higher output and lower energy consumption.

Precision engineering. Global reach.

In the age of intelligent manufacturing,customers need mature technology that is stable, user-friendly, and future-ready, With its outstanding performance,TECBLOW is the trusted choice for the global bottling and packaging industry.We offer a full range of customizable standard machines with multi-cavity options,achieving a maximum output of upto24,000BPH.

Precision Through Strict Quality Control

We adhere to a zero-defect philosophy across our entire production line.Every critical component-from servo motors to pneumatic systems- is sourced from global leaders and rigorously tested before assembly Multi-stage inspections,real-time monitoring,and final performance validation ensure that every TECBLOW machine operates at peak efficiency,right out of the box.

Our Customers

Technology Partners

TEC BLOW RL SERIES

High-Speed Stretch Blow Molding Machine

The second-generation TEC BLOW machine integrates advanced technology and innovation across all key functions.Designed for simple and flexible operation,it ensures continuous,non-stop production with a compact footprint,high output,and significant savings in heating energy and air consumption.These features meet the highest customer demands and establish TEC BLOW as a leader in blow molding technology.

Simple and Flexible Operation

Continuous and Uniterrupted Production

Small Footprint

High Productivity

Low Energy Consumption

Low Air Consumption

Mechanical Characteristics

Fully Automatic Operation Interface

Mitsubishi or Innovance touchscreen +PLC,flexibly configured per customer needs. Graphical interface stores process parameters,alarm diagnostics,production data, maintenance programs, and operation videos.

Remote cloud control system enables global online connection and machine takeover. Real-time fault diagnosis and program optimization with instant cross-border response.

Preform Feeding Unit

Utilizes a star wheel feeding system to replace the traditional mechanical turnover structure.This design ensures smoother and more stable preform feeding,enhancing overall machine performance.

Heating Unit

Features the industry’s smallest38.1mm heating pitch technology,significantly reducing heating oven power consumption.

Utilizes Swiss imported ceramic reflectors to enhance reflection efficiency, improving overall oven performance for higher efficiency and energy savings.

Mechanical Claw(Transfer System)

Pneumatic-Free: No compressed air needed,reducing energy and complexity. High Durability:Rigid mechanical design,70% longer wear part life than pneumatic claws.

Spring-Synchronized Gripping:Flexible & precise neck-handling,no deformation during transfer.

Stretch Blowing Unit

Stretch rod driven by servo motor with rack and pinion transmission.

Equipped with IMI NORGREN high-pressure blowing valve,optional air recovery function.

Blow Mold

All molds are manufactured from7075 aviation aluminum.The single-cavity round mold structure allows for quick and easy mold changes

overall dimensions

Structural Introduction

The TECBLOW series features an easy-to-use,simplified user interface for intuitive machine control.The autoloading preform system incorporates a central rotation mechanism,ensuring stable heat distribution and uniform heating across the preform wall from every angle.Our most advanced transfer technology allows preforms to be picked directly from the heating oven and delivered to the blowing molds in a single step-automatically adjusting to preform distance variations.This fully electric system uses mechanical claw technology operated by servo drives,eliminating complex mechanisms and reducing spare parts usage.The same mechanical claw technology is used at the bottle take-out station after blowing,requiring no pneumatic energy,which enhances component longevity and reduces future spare parts costs for customers.

Feeding Unit

Heating Unit

Transfer Preform

Stretch Unit

Bottle Out

High Pressure

TEC BLOW II SERIES ADVANTAGES

Heating Oven Advantage

Balanced heating mandrel technology;
Cam controls preform active mandrel loading;
NIR heating,intensive heating,PET preform much more uniform heated and optimized.
Heating oven adopt Swiss infrared ceramic reflector technology(heating efficiency much higher than SS reflector,and power consumption 10%-30% lower than traditional type.
38.1mm-the smallest heating distance in blowing machine field, power consumption is much lower than 50.8mm heating pitch.

Preform Transfer Advantages

Continuous preform transfer technology(national patent)for uninterrupted operation.
Screw preform separation system with one-way rotation, reducing wear and mechanical movement.
Fast transverse movement structure with bumper design for smooth and reliable transfer.
Fully electric system using servo-driven mechanical claw technology,eliminating complex mechanisms.
Servo stretching for accurate positioning,ideal for lightweight bottle forming.
Automatically adapts to preform distance variations without additional adjustments

Active Mandrel Advantage

The preform mandrel operates with exceptional stability and high rotational concentricity,ensuring no off-center movement during rotation.This precision design allows for a heating pitch of only38.1mm-the smallest in the industry-significantly reducing heating power consumption and maximizing energy savings.

Four Plate Servo Clamping

The servo motor drives the gearbox to actuate mold clamping,in synchronization with the bottom cam for fast mold opening and closing.

Machine component list

Components	Brand, Country
PLC	Inovance, China
Touch screen	Inovance, China
Servo motors	Inovance, China
Pre-blow regulator valve	Ewo, German
Silencer	Smc, Japan
Air clean and filter	Smc, Japan
Stabilize valve	Parker, USA
Contactor	Schneider, German
Relay	Schneider, German
SCR	Watt, China
High pressure blowing valve 3 in 1	Norgren, England
Preform blowing check sensor	Keyence, Japan
Proximate sensor 1	Autonics, Korea
Proximate sensor 2	Sick, German
Heating lamps	Haichuan, China
Heating reflection board
Sealing cylinder	Lokwah, China
