AOK-20L
- Originated in Europe,suitable for worldwide
With great efforts of European and Chinese engineering team, We designed one rotary
heating&linear blowing technology which most suit for blowing market-TEC BLOW.The compact Design makes machine takes smaller room.and maximum meets Customers’ requirements.controls production cost more efficiently.
- Precise technology, worldwide usage
What customers need is mature technical which is stable and easy operation,TEC BLOW is the ideal choice for blowing companies & water plant companies.We can offer customers precise design for different standard machines
AOK-20L description
HIGH SPEED STRETCH BLOW MOLDING MACHINE BY AOKTAC
Technical specifications
| Model | Unit | AOK-5L | AOK-10L | AOK-20L | AOK-30L KEG | |
|---|---|---|---|---|---|---|
| Clamping System | Number of cavity | Cavities | 2 | 2 | 1 | 1 |
| Calmping unit | Kg | 48000 | 52000 | 65000 | 6500 | |
| Mold stroke | mm | 200 | 240 | 300 | 300 | |
| Stretch stroke | mm | 360 | 320 | 400 | 400 | |
| Bottom stroke | mm | 50 | 50 | 50 | 50 | |
| Cavity distance | mm | 200 | 200 | 300 | 320 | |
| Heating distance | mm | 75 | 75 | 75 | 75 | |
| Number of holder | Pcs | 66 | 66 | 70 | 70 | |
| Container | Max.container volume | ltr | 5 | 10 | 20 | 30 |
| Max. neck diameter (optional) | mm | 45 | 55 | 72 | 80 | |
| Max.prefrom height | mm | 140 | 250 | 250 | 250 | |
| Max.container diameter | mm | 180 | 210 | 250 | 430 | |
| Max.container height | mm | 360 | 430 | 430 | 310 | |
| theoretical output | B.P.H | 1200 | 900 | 500 | 200 | |
| Electrical System | Heating oven | Units | 2 | 3 | 4*4 | 4 |
| Box*channel | 2*12 | 13*12 | 4*17 | 4*17 | ||
| Number of lamp | Pcs | 24 | 72 | 68 | 68 | |
| Heating power | kw | 48 | 78 | 81 | 81 | |
| Installed power | kw | 56 | 50 | 92 | 92 | |
| Voltage | V | 220/380V/3phase | 220/380V/3phase | 220/380V/3phase | 220/380V/3phase | |
| Air System | Operating pressure | kg/cm² | 7 | 7 | 7 | 7 |
| Blowing pressure | Mpa | 3.5 | 3.5 | 3.5 | 3.5 | |
| High pressure air consuming | L/min | 3600 | 5000 | 5000 | 5000 | |
| power | Kw | 32 | 44 | 44 | 44 | |
| Chiller System | Temperature | ℃ | 10-15 | 10-15 | 10-15 | 10-15 |
| Pressure | Mpa | 0.4 | 0.4 | 0.3-0.5 | 0.3-0.5 | |
| Flow rate | L/min | 90 | 200 | 250 | 250 | |
| Heating power | HP | 5 | 5 | 5 | 5 | |
| Machine | Machine dimension (L*W*H) | m | 3.5*2.0*2.0 | 4.8*2.0*2.0 | 5.6*2.9*2.2 | 5.6*2.9*2.2 |
| Machine weight | Kg | 4500 | 6500 | 7000 | 7000 |
Development History
- With over 25 years of unremitting efforts by its team and outstanding achievements in the field of two-stage reheat stretch blow molding technology for PET preforms, AOKTAC has become a global leader in this equipment manufacturing industry.
European Technology & Chinese Efficiency
Originated in Europe, optimized for the world
- Through years of dedicated R&D by our engineering teams,we have evolved the rotary heating& linear blowing technology into the next-generation TECBLOW platform.Designed for maximum efficiency,it significantly reduces footprint while delivering higher output and lower energy consumption.
Precision engineering. Global reach.
- In the age of intelligent manufacturing,customers need mature technology that is stable, user-friendly, and future-ready, With its outstanding performance,TECBLOW is the trusted choice for the global bottling and packaging industry.We offer a full range of customizable standard machines with multi-cavity options,achieving a maximum output of upto24,000BPH.
Precision Through Strict Quality Control
- We adhere to a zero-defect philosophy across our entire production line.Every critical component-from servo motors to pneumatic systems- is sourced from global leaders and rigorously tested before assembly Multi-stage inspections,real-time monitoring,and final performance validation ensure that every TECBLOW machine operates at peak efficiency,right out of the box.
Our Customers
Technology Partners
Equipment introduction

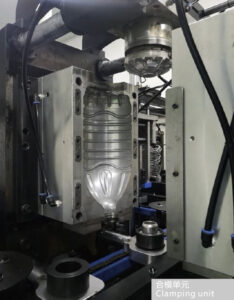

- Use senior Mihana cost iron of clamping unit and moving system.
- Use hydrid drive for clamping, clamping strong.
- Use PID constant control heating unit of the wind motor.
- Touch scree human-machine interface for easy operation.
- Modular component design for easy maintenance.
- Use module type of the high pressure blowing valve combinedwith air recycling system, saving energy and protecingtheenvironment.

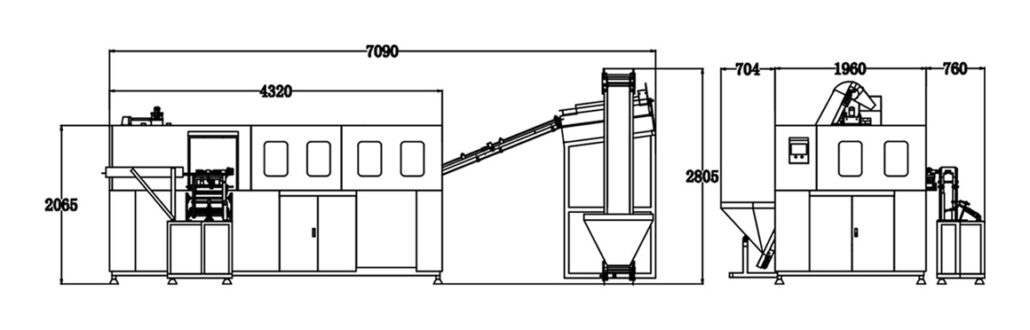

overall dimensions
Structural Introduction

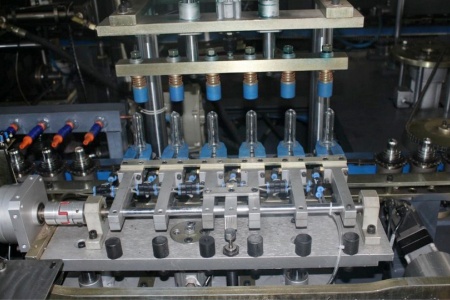

A Preform Feeding System
The conveyor put the preform from the barrel to the entire machine, then the preform are automatic arranged in order for feeding in a single way Adopt FESTO rodless cylinder to divide into blank movement and positioning The clipper picks preforms and place them on the transfer system The way will avoid preforms jamming or wasting preforms.
B Transfer System
The tradtional linear machine is normal transmitted by chain or air cylinder, when cylinder drives, the speed is slow, efficiency is down when chain drives, it is too noisy, AOK series composed of the casting nylon slider with servo motor drive, providing fast and which can meet environmental requirements.
C The Heating System
Preforms are feeding to the heating system in aparallel, together with minimum center between two preforms, in order to make shortest distance to heat,saving more energy Preforms go with rotation modeheat and cooling, to ensure heating averagely.

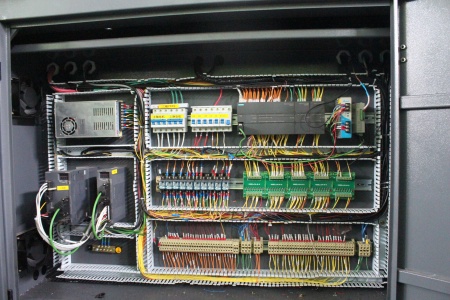

Machine component list
| Components | Brand, Country |
|---|---|
| PLC | Inovance, China |
| Touch screen | Inovance, China |
| Servo motors | Inovance, China |
| Pre-blow regulator valve | Ewo, German |
| Silencer | Smc, Japan |
| Air clean and filter | Smc, Japan |
| Stabilize valve | Parker, USA |
| Contactor | Schneider, German |
| Relay | Schneider, German |
| SCR | Watt, China |
| High pressure blowing valve 3 in 1 | Norgren, England |
| Preform blowing check sensor | Keyence, Japan |
| Proximate sensor 1 | Autonics, Korea |
| Proximate sensor 2 | Sick, German |
| Heating lamps | Haichuan, China |
| Heating reflection board | |
| Sealing cylinder | Lokwah, China |
TEC BLOW workshop
