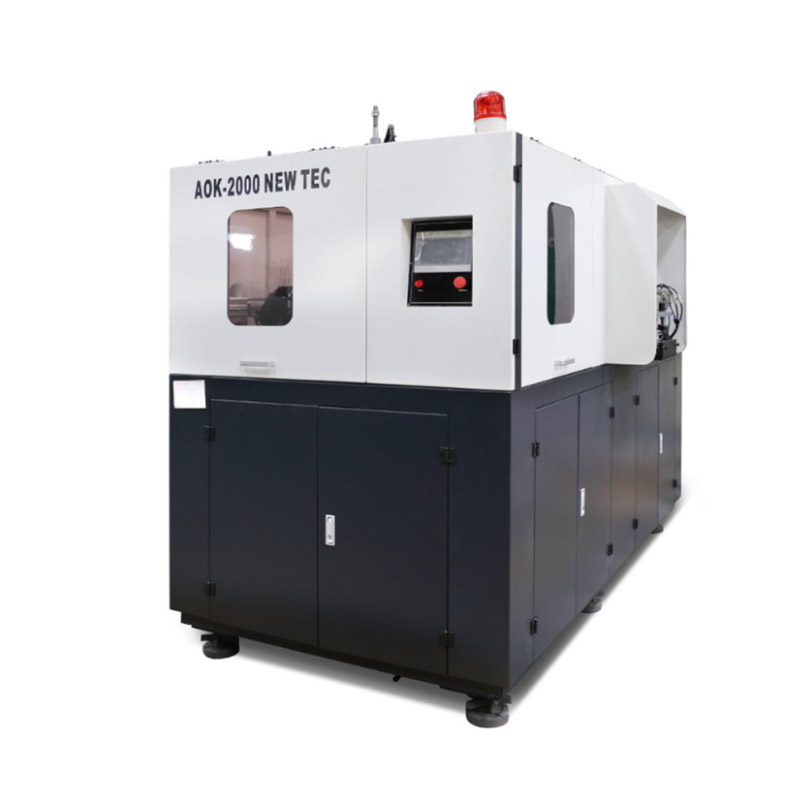

AOK-2000
- Originated in Europe,suitable for worldwide
With great efforts of European and Chinese engineering team, We designed one rotary
heating&linear blowing technology which most suit for blowing market-TEC BLOW.The compact Design makes machine takes smaller room.and maximum meets Customers’ requirements.controls production cost more efficiently.
- Precise technology, worldwide usage
What customers need is mature technical which is stable and easy operation,TEC BLOW is the ideal choice for blowing companies & water plant companies.We can offer customers precise design for different standard machines
AOK-2000 description
HIGH SPEED STRETCH BLOW MOLDING MACHINE BY AOKTAC
Technical specifications
| Model | Unit | AOK-2000 (Atandard) | AOK-2000 (Feeding By Hand) | |
|---|---|---|---|---|
| Clamping System | Number of cavity | Cavities | 2 | 2 |
| Calmping unit | Kg | 20000 | 20000 | |
| Mold stroke | mm | 120 | 120 | |
| Stretch stroke | mm | 320 | 320 | |
| Bottom stroke | mm | 30 | 30 | |
| Cavity distance | mm | 120 | 120 | |
| Heating distance | mm | 55 | 55 | |
| Number of holder | Pcs | 64 | 64 | |
| Container | Max.container volume | ltr | 2 | 2 |
| Max. neck diameter (optional) | mm | 32/38 | 32/38 | |
| Max.prefrom height | mm | 140 | 140 | |
| Max.container diameter | mm | 105 | 105 | |
| Max.container height | mm | 320 | 320 | |
| theoretical output | B.P.H | 2200 | 2200 | |
| Electrical System | Heating oven | Units | 2 | 2 |
| Box*channel | 2*9 | 2*9 | ||
| Number of lamp | Pcs | 18 | 21.6 | |
| Heating power | kw | 21.6 | 24 | |
| Installed power | kw | 25.5 | 25.5 | |
| Voltage | V | 220/380V/3phase | 220/380V/3phase | |
| Air System | Operating pressure | kg/cm² | 7 | 7 |
| Blowing pressure | Mpa | 3.5 | 3.5 | |
| High pressure air consuming | L/min | 20000 | 20000 | |
| power | Kw | 2.4 | 2.4 | |
| Chiller System | Temperature | ℃ | 10-15 | 10-15 |
| Pressure | Mpa | 0.3-0.5 | 0.3-0.5 | |
| Flow rate | L/min | 40 | 40 | |
| Heating power | HP | 4 | 4 | |
| Machine | Machine dimension (L*W*H) | m | 2.6*1.6*1.8 | 2.6*1.6*1.8 |
| Machine weight | Kg | 3000 | 3000 |
Development History
- With over 25 years of unremitting efforts by its team and outstanding achievements in the field of two-stage reheat stretch blow molding technology for PET preforms, AOKTAC has become a global leader in this equipment manufacturing industry.
European Technology & Chinese Efficiency
Originated in Europe, optimized for the world
- Through years of dedicated R&D by our engineering teams,we have evolved the rotary heating& linear blowing technology into the next-generation TECBLOW platform.Designed for maximum efficiency,it significantly reduces footprint while delivering higher output and lower energy consumption.
Precision engineering. Global reach.
- In the age of intelligent manufacturing,customers need mature technology that is stable, user-friendly, and future-ready, With its outstanding performance,TECBLOW is the trusted choice for the global bottling and packaging industry.We offer a full range of customizable standard machines with multi-cavity options,achieving a maximum output of upto24,000BPH.
Precision Through Strict Quality Control
- We adhere to a zero-defect philosophy across our entire production line.Every critical component-from servo motors to pneumatic systems- is sourced from global leaders and rigorously tested before assembly Multi-stage inspections,real-time monitoring,and final performance validation ensure that every TECBLOW machine operates at peak efficiency,right out of the box.
Our Customers
Technology Partners
Equipment introduction
- Use modular design,reduced the occupation area it’s easy to change spare parts
- Use the linear type structure,Compact space for convience of mold-conversion,repairing and maintenance
- The mouth of the annular stainless steel clamping device and integral aluminum alloy cooling device, protect the bottleneck heating deformation,improve the bottle and the bottle cap sealing, prolong the life of the contents.
- The groups of infrared lamp independent thermal balance adjusting device of the bottle blank heating when the temperature uniformity and the bottle exterior color uniform,improve the rate of finished products
- If you take a blow can debug function of large flow two stage blowing device
- Adopted photoelectric control pre-blowing and blowing settings, the La time is not affected by pressure fluctuationsup to the bottle on wall thickness uniformity and consistency
overall dimensions

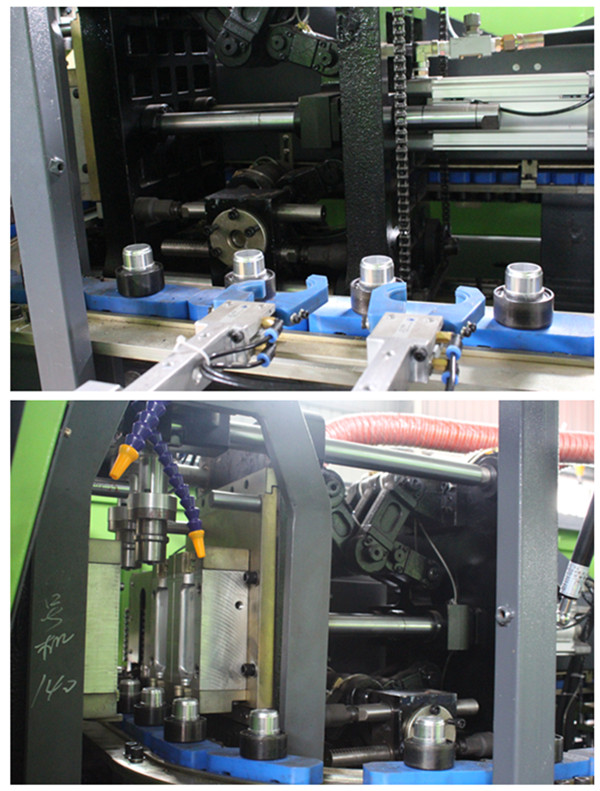

Structural Introduction
Machine component list
| Components | Brand, Country |
|---|---|
| PLC | Inovance, China |
| Touch screen | Inovance, China |
| Servo motors | Inovance, China |
| Pre-blow regulator valve | Ewo, German |
| Silencer | Smc, Japan |
| Air clean and filter | Smc, Japan |
| Stabilize valve | Parker, USA |
| Contactor | Schneider, German |
| Relay | Schneider, German |
| SCR | Watt, China |
| High pressure blowing valve 3 in 1 | Norgren, England |
| Preform blowing check sensor | Keyence, Japan |
| Proximate sensor 1 | Autonics, Korea |
| Proximate sensor 2 | Sick, German |
| Heating lamps | Haichuan, China |
| Heating reflection board | |
| Sealing cylinder | Lokwah, China |
TEC BLOW workshop
