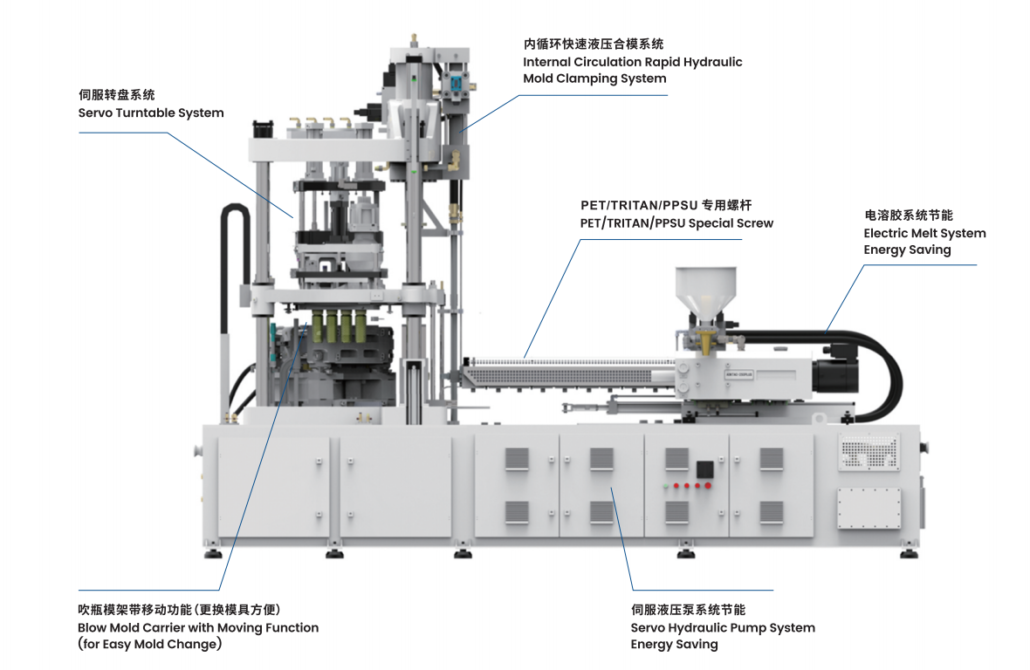

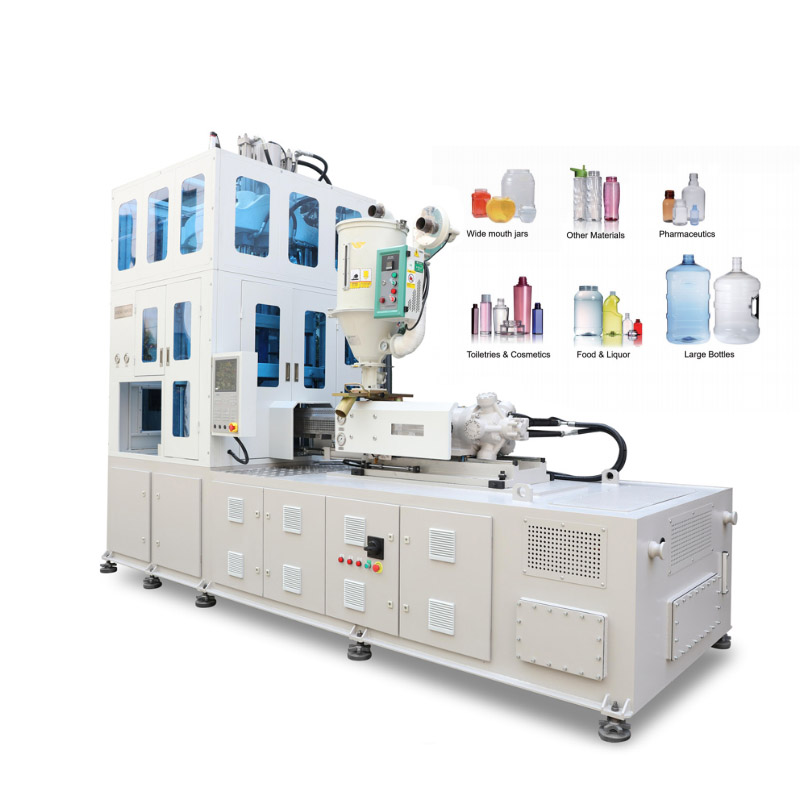

AOK-12M-20T
CORE ADVANTAGES
- Intelligent temperature control-30%better wall uniformity
- Fully servo-driven-over 40% energy reduction
- Modular mold system -changeover in<1hour
- Multi-material molding-PET,PETG,PC,PPSU compatible
AOK-12M-20T description
ONE-STEP INJECTION STRETCH BLOW MOLDING MACHINE BY AOKTAC
THE SMART CHOICE FOR HIGH-EFFICIENCY BLOW MOLDING
- Since its launch in 2016, the AOK Serieshas defined the benchmark for scalable, high-speed, and energy-efficientinjection blow molding systems. In 2018, the platform was further enhanced with the integration of TEC Blow Technology, reinforcing its core advantages: exceptional energy efficiency, a compact footprint, and outstanding production versatility.
- The AOK-250isengineered for large-mouth and wide-neck containers, offering stable performance with superior finish quality
- The AOK-150 is optimized for ultra-hich-speed production of small-format bottles, achieving leading output rates within a minimal floor space.
- The AOK-500 is built for heavy-duty.high-capacity production,designed to meet the most demanding output and durability requirements across industries.
- ldeal for cosmetics, pharmaceutical, and premium packaging applications-where precision consistently meets productivity.

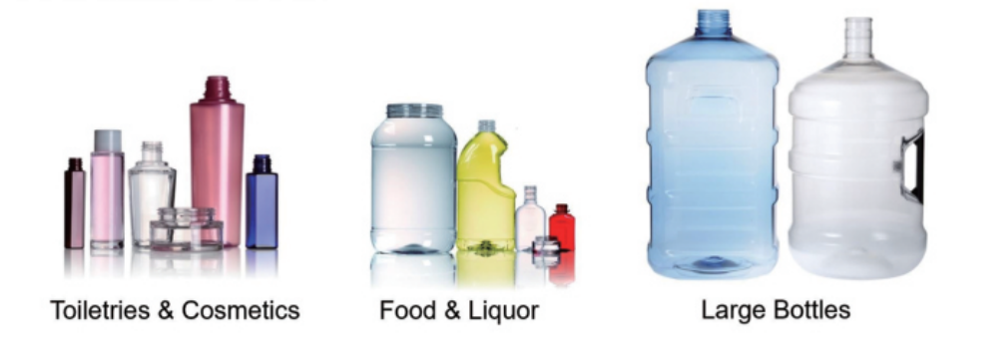

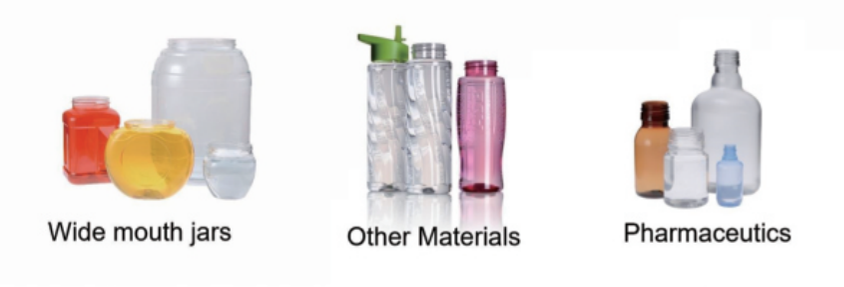

Typical Containers
- Applications
Personal care,liquor,general foods,cosmetics.pharmaceutical, medical,household,edible oil,mineral water etc.
- Moldable resins
PET,PETG.PP,HDPE,PC.PES,COP,PPSU,Tritan etc.
- Shapes
Circular,non circular,fan-shaped,wide mouthed,thick walled. ultra light,bottle with handle,etc.s

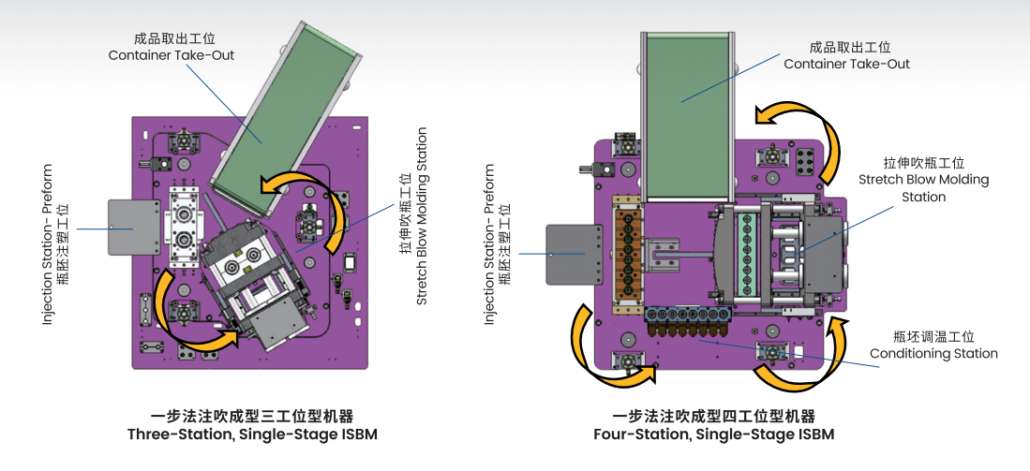

CORE DIFFERENCES BETWEEN 3- STATION AND 4-STATION INJECTION BLOW MOLDING MACHINES
PROCESS & MOLD DESIGN
The 4-station type incorporates a dedicated conditioning angate-cutting station after injection for more precise process control.Molds typically feature an open,long-gate hot runner structure
APPLICATION SUITABILITY
As some high-end cosmetic bottles require the preventionf PET crystallization and whitening at the gate area during molding,the 4-station machine typically adopts along-gate design along with a tail-cutting mechanism specifically to prevent whitening at the bottle bottom.
PROCESS & ENERGY EFFICIENCY
The 3-station type directly utilizes the residual heat of the injeected preform for temperature conditioning within the mold. resulting in lower energy consumption.Molds employ a valve-gated hot runner system.
Components | Brand, Country |
PLC | Inovance, China |
Touch screen | Inovance, China |
Servo motors | Inovance, China |
Pre-blow regulator valve | Ewo, German |
Silencer | Smc, Japan |
Air clean and filter | Smc, Japan |
Stabilize valve | Parker, USA |
Contactor | Schneider, German |
Relay | Schneider, German |
SCR | Watt, China |
High pressure blowing valve 3 in 1 | Norgren, England |
Preform blowing check sensor | Keyence, Japan |
Proximate sensor 1 | Autonics, Korea |
Proximate sensor 2 | Sick, German |
Heating lamps | Haichuan, China |
Heating reflection board | |
Sealing cylinder | Lokwah, China |
