AOK-2000-JAR
- Originated in Europe,suitable for worldwide
With great efforts of European and Chinese engineering team, We designed one rotary
heating&linear blowing technology which most suit for blowing market-TEC BLOW.The compact Design makes machine takes smaller room.and maximum meets Customers’ requirements.controls production cost more efficiently.
- Precise technology, worldwide usage
What customers need is mature technical which is stable and easy operation,TEC BLOW is the ideal choice for blowing companies & water plant companies.We can offer customers precise design for different standard machines

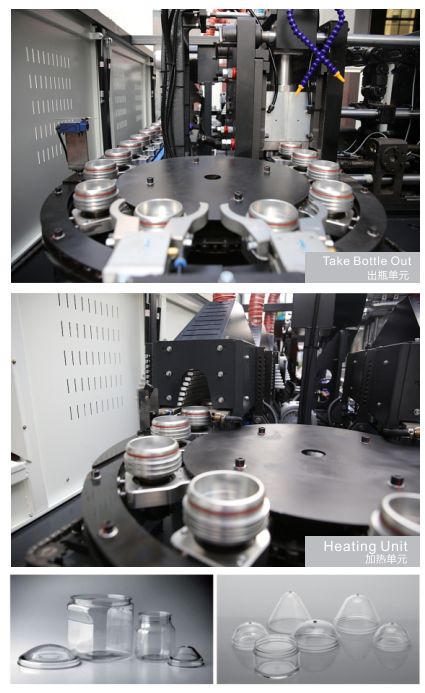

AOK-2000-JAR description
HIGH SPEED STRETCH BLOW MOLDING MACHINE BY AOKTAC
Technical specifications
| Model | Unit | AOK-2000JAR-L | AOK-2000JAR-L | AOK-4000JAR-L | AOK-6000JAR-L | |
|---|---|---|---|---|---|---|
| Clamping System | Number of cavity | Cavities | 2 | 2 | 4 | 6 |
| Calmping unit | Kg | 48000 | 48000 | 48000 | 5600 | |
| Mold stroke | mm | 180 | 220 | 130 | 130 | |
| Stretch stroke | mm | 320 | 340 | 280 | 200 | |
| Bottom stroke | mm | 30 | 50 | 50 | 30 | |
| Cavity distance | mm | 152.4 | 190.5 | 114.3 | 76.2 | |
| Heating distance | mm | 152.4 | 190.5 | 114.3 | 76.2 | |
| Number of holder | Pcs | 66 | 66 | 72 | 72 | |
| Container | Max.container volume | ltr | 3 | 5 | 0.5 | 0.6 |
| Max. neck diameter (optional) | mm | 130 | 150 | 80 | 65 | |
| Max.prefrom height | mm | 130 | 150 | 115 | 100 | |
| Max.container diameter | mm | 135 | 175 | 105 | 65 | |
| Max.container height | mm | 280 | 340 | 250 | 200 | |
| theoretical output | B.P.H | 1200-1600 | 1000-1200 | 2400 | 3800 | |
| Electrical System | Box*channel | Units | 4*12 | 4*12 | 8*9 | 10*8 |
| Number of lamp | Pcs | 48 | 48 | 72 | 70 | |
| Heating power | kw | 48 | 48 | 72 | 70 | |
| Installed power | kw | 52 | 52 | 84 | 82 | |
| Actual electricity consumption | kw | 25 | 25 | 35 | 35 | |
| Voltage | V | 220/380V/3phase | 220/380V/3phase | 220/380V/3phase | 220/380V/3phase | |
| Air System | Operating pressure | kg/cm² | 7 | 7 | 7 | 7 |
| Blowing pressure | Mpa | 3.5 | 3.3 | 3.3 | 3.3 | |
| High pressure air consuming | L/min | 3200 | 3200 | 3200 | 3200 | |
| power | Kw | 36 | 18 | 18 | 18 | |
| Chiller System | Temperature | ℃ | 10-15 | 10-15 | 10-15 | 10-15 |
| Pressure | Mpa | 0.3-0.5 | 0.3-0.5 | 0.3-0.5 | 0.3-0.5 | |
| Flow rate | L/min | 40 | 40 | 40 | 40 | |
| Heating power | HP | 5 | 5 | 5 | 5 | |
| Machine | Machine dimension (L*W*H) | m | 3.8*2.0*2.2 | 4.8*2.2*2.2 | 6.5*2.2*2.2 | 6.5*2.2*2.2 |
| Machine weight | Kg | 4500 | 5500 | 6000 | 6000 |
Development History
- With over 25 years of unremitting efforts by its team and outstanding achievements in the field of two-stage reheat stretch blow molding technology for PET preforms, AOKTAC has become a global leader in this equipment manufacturing industry.
European Technology & Chinese Efficiency
Originated in Europe, optimized for the world
- Through years of dedicated R&D by our engineering teams,we have evolved the rotary heating& linear blowing technology into the next-generation TECBLOW platform.Designed for maximum efficiency,it significantly reduces footprint while delivering higher output and lower energy consumption.
Precision engineering. Global reach.
- In the age of intelligent manufacturing,customers need mature technology that is stable, user-friendly, and future-ready, With its outstanding performance,TECBLOW is the trusted choice for the global bottling and packaging industry.We offer a full range of customizable standard machines with multi-cavity options,achieving a maximum output of upto24,000BPH.

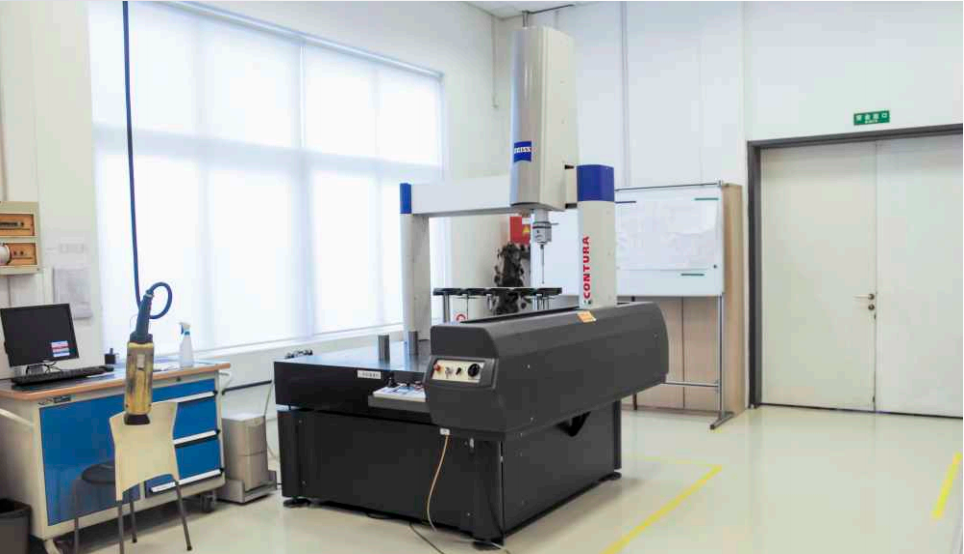

Precision Through Strict Quality Control
- We adhere to a zero-defect philosophy across our entire production line.Every critical component-from servo motors to pneumatic systems- is sourced from global leaders and rigorously tested before assembly Multi-stage inspections,real-time monitoring,and final performance validation ensure that every TECBLOW machine operates at peak efficiency,right out of the box.
Our Customers
Technology Partners
Equipment introduction
Narrow-mouth Cosmetic Blowing Molding Description Of Application
- Aoktac offers A 3600 solution including.Jar bottle design development.Pet preform design development.New Nozzle design for blowing
- Provision of injection molds and production of sample.Preforms by qualified partners
overall dimensions
Structural Introduction
Machine component list
| Components | Brand, Country |
|---|---|
| PLC | Inovance, China |
| Touch screen | Inovance, China |
| Servo motors | Inovance, China |
| Pre-blow regulator valve | Ewo, German |
| Silencer | Smc, Japan |
| Air clean and filter | Smc, Japan |
| Stabilize valve | Parker, USA |
| Contactor | Schneider, German |
| Relay | Schneider, German |
| SCR | Watt, China |
| High pressure blowing valve 3 in 1 | Norgren, England |
| Preform blowing check sensor | Keyence, Japan |
| Proximate sensor 1 | Autonics, Korea |
| Proximate sensor 2 | Sick, German |
| Heating lamps | Haichuan, China |
| Heating reflection board | |
| Sealing cylinder | Lokwah, China |

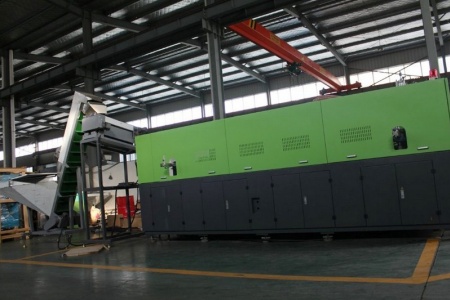

TEC BLOW workshop
